How the VLOOKUP function works with this simple explanation and example using a Starbucks menu

This post explains the Vlookup function in simple terms using a Starbucks menu as an example. Includes a step-by-step guide on creating a vlookup formula and free file download to follow along.
Bottom Line: Learn how the VLOOKUP function works with this simple explanation and example using a Starbucks menu.  You can download an example file below to follow along.
Skill Level: Beginner to Expert
VLOOKUP Explained at Starbucks Large
In this article you will learn the basic concepts of the VLOOKUP function.  I provide a step-by-step guide on how to write a vlookup formula and you can download an Excel file to follow along.
Plus, you will never look at a restaurant menu the same way again…

Vlookups at Starbucks?

I was standing in line at Starbucks the other day, studying the prices on the menu, and I realized I was doing a bunch of vlookups in my head.
As I scanned down the items on the menu and then looked across to the price columns, I was doing the same thing a vlookup function does.
So I thought this might be a good way to explain the vlookup because everyone can relate to ordering from a food menu.  And even if you're already a vlookup expert, this might help you explain the function to your co-workers.

Vlookup Defined

The job of the vlookup is to look for a value (either numbers or text) in a column.  Once it finds a match, the vlookup will return a value from any cell in the same row as the match.

The Starbucks Menu Example

Let's look at the Starbucks menu as an example.  When looking at the menu I decide that I want to order a Caffe Mocha.  I also know that I want a size Grande.  Now I need to determine the price to make sure I have enough money to pay for this expensive cup of coffee.
VLOOKUP Explained at Starbucks Steps 1-2-3

We naturally do this process in a series of steps in our head (see image above):
  1. First we look down the list of items on the left side of the menu until we find Caffe Mocha.
  2. Once we find the item, we then look across the columns to the right to find the price.
  3. The prices for the size Grande items are listed in the 3rd column of the menu, so we scan over to the 3rd column to find our price.  There it is, $3.95 for a delicious cup of energy.

Vlookup Example in Excel + Download

Now we'll take a look at how this example works in Excel.  I recreated the Starbucks menu in Excel for this example.  You can download the file to follow along.

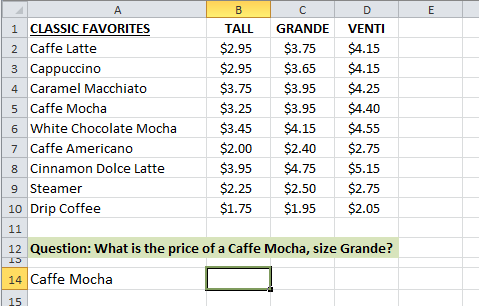

Excel VLOOKUP Starbucks Menu Example in Excel
We want to answer the question: “What is the price of a Caffe Mocha, size Grande?”
We will use the vlookup function to answer this question in cell B14.

Vlookup Function Components

First we need to understand the components or arguments that make up the vlookup function.  The following image shows the Excel definition of the Vlookup function, and then my simple definition.  This simple definition just makes it easier for me to remember the four arguments.
Excel VLOOKUP Simple Definition
I explain this simple definition below as we walk through an example of creating a vlookup formula.

Creating the Vlookup Formula

Now we will create the vlookup formula to find the price of the Grande Caffe Mocha.
1. lookup_value – This is the what argument.

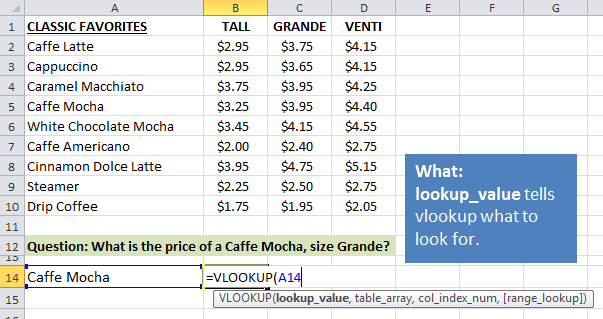

Excel Vlookup Explained Lookup Value What
In the first argument we tell the vlookup what we are looking for.  In this example we are looking for “Caffe Mocha”.  I have entered the text “Caffe Mocha” in cell A14, so we can make a reference to cell A14 in the formula.
We could also add the text “Caffe Mocha” (surrounded in quotes) directly into the formula.
=VLOOKUP(“Caffe Mocha”
But using cell references (A14) makes the formula easier to copy down and reuse for lookups on other items.
2. table_array – This is the where argument.
Excel Vlookup Explained Where - Table Array
We need to tell the vlookup where to look for “Caffe Mocha”.  This argument is specified as a range of cells, and the vlookup will only look in the left column of this range.  We also need to include the columns that we want to return a value from.  In this case we need to include the price columns because we want to return the price for our lookup_value.
So I reference the range $A$2:$D$10 in the second argument of the function.  This means that the vlookup will look through all the rows in column A, from A2 to A10, in search of the value “Caffe Mocha”.  Once a match is found it will then look to the right a specific number of columns to return a result.
3. col_index_num – This is the column number argument.
Excel Vlookup Explained Column Index Number
The column number tells the vlookup which column in the table_array we want to return as the result.  It counts the columns from left-to-right based on the starting column of the table_array.
Since we want to know the price for the size Grande, I put the number “3” as the third argument of the function.  This will return a result from the third column (column C) of the table_array.
4. [range_lookup] – This is the closest match argument.
Excel Vlookup Explained Closest Match
Here we specify whether the vlookup should find an exact match or closest match to the lookup_value.  By default, the vlookup will find the closest match to our lookup_value and return a result.  This method is best used for looking up numbers.
However, for our example we want to find the exact match to the word “Caffe Mocha”, so I will put “False” for the range_lookup argument.  This means that the vlookup will look for an exact match to the value “Caffe Mocha” in the first column of the table_array.  If it does not find the word it will return an error (#N/A).
The Result – $3.95 for a Grande Caffe Mocha!

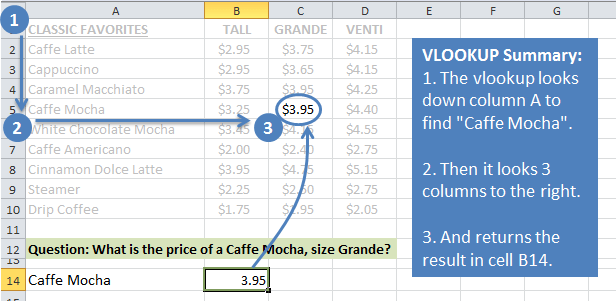

Excel Vlookup Formula Result Explained
The vlookup formula returns the value 3.95 in cell B14 as expected.  This formula can now be reused in other cells to look up other items in the menu.  Or you could change the value in cell A14 to a different menu item, “Cappuccino” for example, to instantly see the price for the size Grande Cappuccino.

Conclusion – It's Time for a Coffee!

I hope this helps you understand the basics of how the vlookup function works.  Vlookup is one of the most commonly used functions in Excel for looking up data, and it's a great one to know.  This article only scratches the surface of what can be done with the vlookup function, but it's best to understand the basics before you learn more advanced techniques.
Most importantly, you now have a good excuse to go out for a coffee break next time you need to explain the vlookup function to a co-worker.
As always, leave a comment below with any questions or suggestions.
